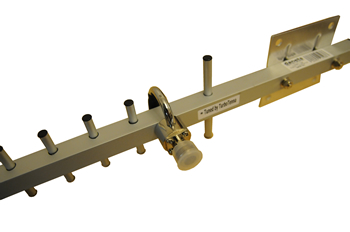

+20dBi Ultra Long Range Antenna

17 Elements High Gain 2.4GHz Yagi Antenna
Ultra Long Range
Pole Mounting Kit for Fixed In/Outdoor Setup
HongkongPost
Please enter coupon code in the box. Leave it empty if you don't have one.
Insurance will be added to the Cart for review before making payment.INSURANCE
+20dBi Yagi Antenna
UNIT(S)
US$79.95/Unit
Add Lightning Arrestor UNIT(S) US$23.95/Unit
Add 20FT RF Cable UNIT(S) US$33.95/Uni t
Add +35dBm USB-Yagi Kit UNIT(S) US$149.95/Unit

Choose the +20dBi Yagi when you know exactly where the remote signal source is located.

The 17 element design focuses the beam with ultra high gain in the direction it is pointing. Ideal for situation where you need to build a wireless bridge between two locations. For example, you could extend your WLAN from one building to another by setting up two Yagi pointing towards each other. We also supply the backhaul WiFi devices and other cable accessories as a complete WLAN bridging solution.

Excellent range and stability.

See also the Ultimate Wardriving kit.

Packaging Content (+20dBi Yagi)
  +20dBi 2.4GHz Omni antenna with two U-rings (4.5cm diameter) for pole mounting 1 unit
  User Guide 1 unit
top
Option 1 (Add Lightning Arrestor)
  DC to 6GHz Lightning Arrestor with N-male and N-female RF connector. Fit in this +15dBi Omni antenna directly 1 unit
top
Option 2 (Add 20FT RF cable)
  20FT LMR-195 Ultra Low-Loss RF cable (N-male to RP-SMA) 1 unit
top
Option 3 (+35dBm USB-Yagi Outdoor Plug & Play Kit)
  +20dBi 2.4GHz Omni antenna with two U-rings (4.5cm diameter) for pole mounting 1 unit
  DC to 6GHz Lightning Arrestor with N-male and N-female RF connector. Fit in this +20dBi Yagi antenna directly 1 unit
  20FT LMR-195 Ultra Low-Loss RF cable (N-male to RP-SMA) 1 unit
  DN-8838 802.11n High Power USB adapter 1 unit
  User Guide 1 unit
top
Features and Benefits
  Works with 802.11b/g & 802.11n wireless router and adapter
  High gain and long range
  Equipped with a pole mounting kit for easy installation
  Individually tuned for peak performance
  Made of metal and high quality director element
  Suitable for private leased circuit backhaul and LAN bridging across two locations
top
Specifications
  Frequency 2.4GHz to 2.5GHz
  Gain +20dBi
  Half Power Beam Width 40 deg horizontal and 28 deg vertical
  Impedance 50 Ohm
  Max Input 100 Watts
  VSWR < 1.5:1 avg
  Length 70cm
  Material Base Metal
  RF Connector N-female
  Polarization Horizontal and Vertical
