Wi-Fi Application



Lightning Arrester


DC to 6GHz

A End Connector: N-male
B End Connector: N-female

Ground terminal
Replacable arrester gas tube cartridge
Compatible with 2200mW NextG USB-Yagi TurboTenna
You must use it when you install an antenna permanantly at a location susceptible to lightning strike
HongkongPost
Please enter coupon code in the box. Leave it empty if you don't have one.
Insurance will be added to the Cart for review before making payment.
INSURANCE
Lightning Arrester
UNIT(S)
US$29.95/Unit
Lightning Arrester with cables UNIT(S) US$69.95/Unit

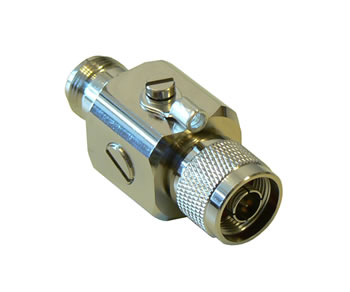

The Lightning Arrester is a high-performance gas discharge tube suppressor featuring wide-band operation up to 6 GHz with a gound terminal.

The unit features the N-male and N-female RF connector mated pairs for easy fitting.

The replaceable gas tube cartridge is housed inside the unit. Its multi-strike capability and fast response time makes it suitable for a wide range of WiFi, TV ariel applications.

Where applicable, follow the electrical codes for the country of installation. Installation must be carried out by authorized technical personnel. Examples of country codes include:

USA National Electrical Code (NFPA 70)

Canada Canadian Electrical Code (CSA C22.1)

UK British Standards Institute (BSI 7671)



Packaging Content (Lightning arrestor only)
  Lightning Arresstor with gas discharge tube suppressor (N-male/ N-female) 1 unit

top

Packaging Content (with cables for USB-Yagi TurboTenna)
  DN8921LA Lightning Arresstor with gas discharge tube suppressor (N-male/ N-female) 1 unit
  6FT RF cable (RP-SMA-female to N-female) 1 unit
  6FT RF cable (N-male to RP-SMA) 1 unit

top

Features and Benefits
  Compatible with 2200mW NextG USB-Yagi TurboTenna
  Ground terminal to earth the high voltage strike
  Installation must be carried out by authorized technical personnel in your country
  N-male / N-female connectors
  Replaceable Gas Discharge Tude Suppressor

top

Specifications
  Frequency DC to 6GHz
  Insertion loss 0.1dB at 6GHz
  Cartridge Replacable gas discharge tube
  Impedance 50 Ohm
  Discharge Rated at 20K Amp
  Max input 75 Watts
  RF connectors N-male / N-female
  Material base All metal housing
