Driven by the latest NextG 820.11n High Speed USB Wi-Fi dongle with a built-in RF amplifier, this slim and handy USB-Yagi directional antenna delivers a remarkable horse power of 2200mW at a top speed of 300Mbps.

Unlike most Yagi antennae with long broom and numerous director elements, the design of the NextG USB-Yagi aims at reducing the overall length of the antenna and whilst exceeding the isotropic gain with a wide 56 deg HPBW (half power beam width) beaming aperture to pick up the Wi-Fi signal nearby and afar, blending the best of both worlds.

See the excellent antenna performance below.

It is also slim and light weight that you could carry it in a traveller bag.

From a technical standpoint, no antenna can be designed with purely trial and error, let alone the ones without calibration and tuning which turn out to make a hugh difference in performance.

We use computer aided design (CAD) to engineer the seamless integration of the BALUN (the antenna's driving element) and the USB dongle (radio), a critical differential advantage for matching the impedance in the light of maximizing the signal transmission and penetration without incurring power loss in coaxial cable.

The antenna is made of rigid metal frame and elements so that its geometry, particularly the driver loop element, stays intact against transportation or normal usage for peak performance

As a result, it instantly improves your computer's Wi-Fi reception capability beyond the built-in standard factory gears.

It works within minutes. Simpy plug in the USB2.0 cable of the NextG USB-Yagi antenna to the laptop or desktop PC followed by a few simple clicks for CD-ROM driver installation - There is absolutely no need to worry about the cable compatibility issue.

What's more? You could construct a High Power Universal Wi-Fi Repeater with the additional 11N USB-Omni AP/Repeater kit. Typical application is to pick up Wi-Fi signal from ashore and let other computers share the Internet simultaneously.

Here's how it works. Use the USB-Yagi to catch the remote signal and share it amongst the other Wi-Fi PC clients with the 11N USB-Omni AP/Repeater. It works with all brands of (remote) wireless router, including OPEN or secured WEP, WAP/WAP2 PSK AES TKIP and 802.1x RADIUS server such as BT Openzone and Free Wi-Fi. Detailed Universal Repeater setup manual is included in the 11N USB-Omni AP/Repeater kit.

Simply faster and more powerful!!

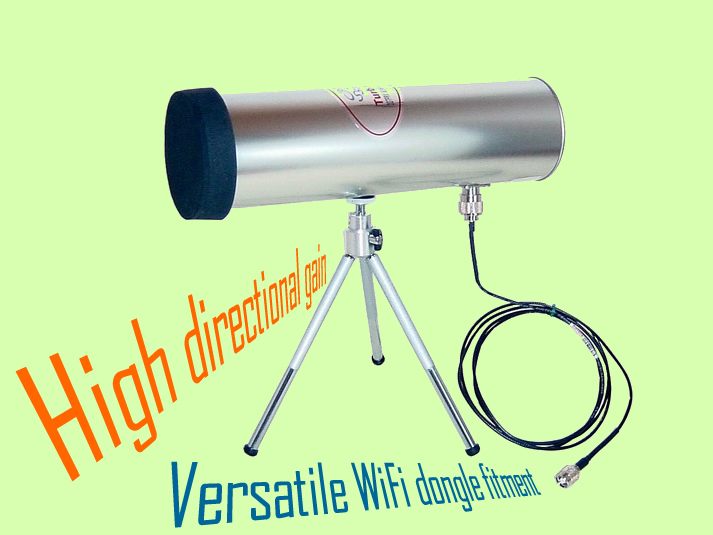

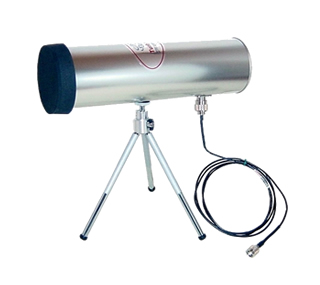

TurboTenna 11N PRO Waveguide Antenna with mini-tripod and N-female connector

  • 18dBi High Gain directional antenna with N-female connector
  • Excellent signal penetration WiFi booster
  • Something to explore: Extra gain if it's mounted on a satellite dish
  • Optional 6FT RF cable with N-male to RP-SMA connector
  • Mini-tripod with extendable legs
  • Tripod mounting also compatible with standard camera tripod



HongkongPost
Please enter coupon code in the box. Leave it empty if you don't have one.
TurboTenna 11N PRO with N-female connector
UNIT(S)
US$24.95/Unit
ADDED WITH 6FT N-male to RP-SMA RF cable UNIT(S)
US$39.95/Unit
ADDED WITH 6 inches RP-SMA-female to U.FL RF cable UNIT(S)
US$45.95/Unit



Replace the factory antenna for signal penetration - works with leading brands of wireless routers, USB WiFi adpaters and laptops.

The +18dBi TurboTenna is a waveguide booster antenna which picks up WiFi signal in the direction it is pointing. Penetrates in-house concrete walls to improve signal strength and quality. Unlike other cantenna and copycat Yagi with poor impedance matching, the TurboTenna is specially engineered and manufactured to push the 2.4GHz WaveGuide technology to its limits.

See diagram on the right showing the signal strength with and without the TurboTenna.

It is easy to install and set up - simply unscrew the rubber duck antenna from your router or USB dongle and connect it to the TurboTenna with your matching RF cable. It immediately becomes a handy WarDriving tool. It's fun!

It looks elegant on book shelf with the glossy metal frame and the front black protective plastic nose.

Simply strong!



Here are a few application examples:

TurboTenna 11N PRO <-- 6 FT LMR-100A matching RF cable <-- USB Wi-Fi adapter
TurboTenna 11N PRO <-- 6 FT LMR-100A matching RF cable <-- Wireless Router
TurboTenna 11N PRO <-- 6 FT LMR-100A matching RF cable <-- PCI WiFi adapter



You may use the 4 inches U.FL thin pigtail to provide a RF connector interface in case your wireless router has non-detachable antenna.

TurboTenna 11N PRO <-- 6 FT LMR-100A matching RF cable <-- 6 Inches U.FL pigtail <-- miniPCI or miniPCI-E card of the laptop
TurboTenna 11N PRO <-- 6 FT LMR-100A matching RF cable <-- 6 Inches U.FL pigtail <-- Wireless Router


Packaging Content (Antenna only)
  +18dBi TurboTenna 11N PRO WiFi antenna Black with mini-tripod 1 unit
  User Guide 1 unit



Packaging Content (Added 6FT RF cable)
  +18dBi TurboTenna 11N PRO WiFi antenna Black with mini-tripod 1 unit
  6FT Ultra Low-Loss RF cable (N-male to RP-SMA). This cable is compatible wtih the industry standard RP-SMA connector on Wireless Routers and Wi-Fi Adapters 1 unit
  User Guide 1 unit



Packaging Content (Added 6FT RF cable & 6IN UFL pigtail)
  +18dBi TurboTenna 11N PRO WiFi antenna Black with mini-tripod 1 unit
  6FT Ultra Low-Loss RF cable (N-male to RP-SMA). This cable is compatible wtih the industry standard RP-SMA connector on Wireless Routers and Wi-Fi Adapters 1 unit
  6 Inches U.FL to RP-SMA-female Thin cable. The RP-SMA-female fits in directly to the RP-SMA connector. 1 unit
  User Guide 1 unit


Features and Benefits
  Works with 802.11b/g & 802.11n wireless router and adapter
  High gain and excellent penetration booster
  Equipped with a tripod for easy polarization adjustment for the best results
  Precisely engineered for impedance matching
  Made of high quality and light weight metal
  Boost the signal for eliminating the blind spot


Specifications
  Frequency 2.4GHz - 2.5GHz
  RGain 18dBi
  Beam Width ~30 deg
  Impedance 50 Ohm
  Max Input 50 Watts
  VSWR < 1.5:1 avg
  Length 30cm
  Material base Metal
  RF connector N-female
  Polarization Linear
