USB-Yagi TurboTenna Plug & Play Wi-Fi 2.4GHz Antenna for Internet Access



Google "TurboTenna and channel 5 gadget show" together
Works with Windows 10/8.1/8/7/VISTA/XP, Linux scroll down for driver update
also works with Apple MAC OS X 10.9 Mavericks and earlier versions
Max data speed 300Mbps
Kit includes USB-Yagi, tripod, CD and 3 meter USB2.0 cable
Power adjustable
HongkongPost
Please enter coupon code in the box. Leave it empty if you don't have one.
Insurance will be added to the Cart for review before making payment.
INSURANCE
2200mW USB-Yagi TurboTenna
UNIT(S)
US$99.95/Unit

Driven by the latest NextG 820.11n High Speed USB Wi-Fi dongle with a built-in RF amplifier, this slim and handy USB-Yagi directional antenna delivers a remarkable horse power of 2200mW at a top speed of 300Mbps.

Unlike most Yagi antennae with long broom and numerous director elements, the design of the NextG USB-Yagi aims at reducing the overall length of the antenna and whilst exceeding the isotropic gain with a wide 56 deg HPBW (half power beam width) beaming aperture to pick up the Wi-Fi signal nearby and afar, blending the best of both worlds.

See the excellent antenna performance below.

It is also slim and light weight that you could carry it in a traveller bag.

From a technical standpoint, no antenna can be designed with purely trial and error, let alone the ones without calibration and tuning which turn out to make a hugh difference in performance.

We use computer aided design (CAD) to engineer the seamless integration of the BALUN (the antenna's driving element) and the USB dongle (radio), a critical differential advantage for matching the impedance in the light of maximizing the signal transmission and penetration without incurring power loss in coaxial cable.

The antenna is made of rigid metal frame and elements so that its geometry, particularly the driver loop element, stays intact against transportation or normal usage for peak performance

As a result, it instantly improves your computer's Wi-Fi reception capability beyond the built-in standard factory gears.

It works within minutes. Simpy plug in the USB2.0 cable of the NextG USB-Yagi antenna to the laptop or desktop PC followed by a few simple clicks for CD-ROM driver installation - There is absolutely no need to worry about the cable compatibility issue.

What's more? You could construct a High Power Universal Wi-Fi Repeater with the additional 11N USB-Omni AP/Repeater kit. Typical application is to pick up Wi-Fi signal from ashore and let other computers share the Internet simultaneously.

Here's how it works. Use the USB-Yagi to catch the remote signal and share it amongst the other Wi-Fi PC clients with the 11N USB-Omni AP/Repeater. It works with all brands of (remote) wireless router, including OPEN or secured WEP, WAP/WAP2 PSK AES TKIP and 802.1x RADIUS server such as BT Openzone and Free Wi-Fi. Detailed Universal Repeater setup manual is included in the 11N USB-Omni AP/Repeater kit.

Simply faster and more powerful!!

What OS does it support?
Windows 10, 8.1, 8, 7, XP, VISTA X86 and 64 Bits, Apple MAC OS X 10.4 10.5 10.6, 10.7, 10.8, 10.9 Mavericks Linux, Ubuntu, etc.

What Wi-Fi standard does it work with?
802.11b, 802.11g, 802.11n

Design Tips. Why external dongle rather than internal?
We could hide the dongle inside the antenna but this is not going to give you any protection for outdoor application particularly during raining and thunderstorm.

The reason for this is that lightning could induce electric shocks through the USB cable and could subsquently damage the terminating equipment.

The external dongle offers the flexibility of cascading an optional lightning arrestor between the antenna and the USB dongle. You may also connect it to a RF amplifier in case you need more horse power in the future.



Windows & Apple Driver Update
  Windows XP
  Windows 7 & Vista
  Windows 10/8.1 /8
  Apple MAC OS X 10.9 Mavericks *see note below
  Apple MAC OS X earlier versions
  Power Adjustment

Note*: If your Apple computer is equipped with a standard size 5.25 inches CDROM drive, you may simply download the above driver for installation.



Packaging Content (USB-Yagi TurboTenna kit)
  NextG USB-Yagi TurboTenna 2.4GHz Antenna 1 unit
  Tripod with extendable legs 1 unit
  CD drivers for Windows 10/8.1/8/7/VISTA/XP, Linux and Mac 1 unit
  2 Meters Ultra Low DC resistance USB2.0 cable 1 unit
  User Guide 1 unit

top

Features and Benefits
  Compliant to IEEE 802.11b 802.11g 802.11n International Wi-Fi Standards
  Operates under the licence exempted 2.4GHz ISM frequency band
  Delivering an adjustable horse power 100 ~ 2200mW with max speed 300Mpbs
  Slim, handy and easy to setup on the tripod
  Upgradable to a Universal Repeater with the 11N USB-Omni AP/Repeater kit

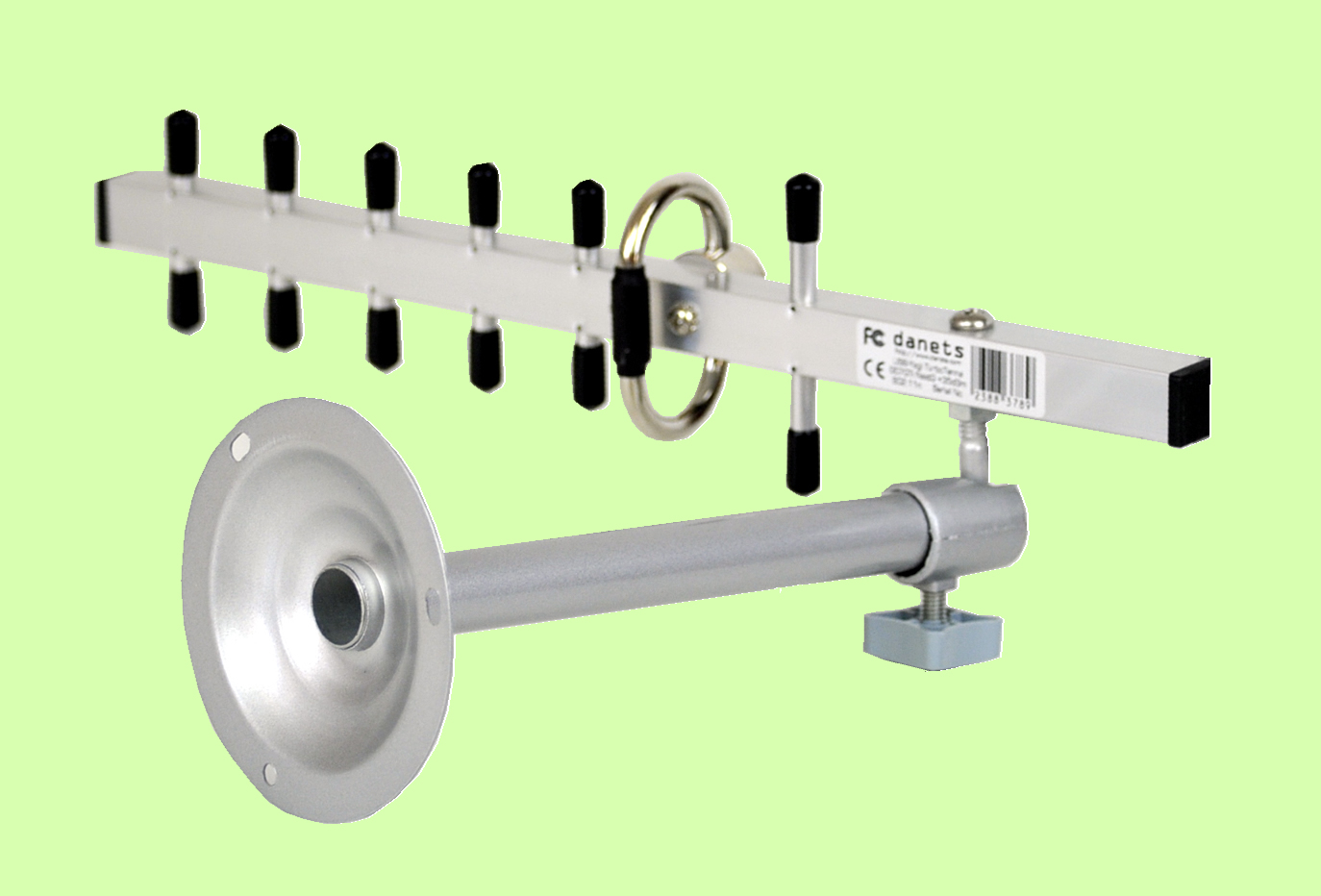

  Optional outdoor mounting kit, lightning arrestor kit, power amp kit available
  Support packet monitoring and injection for advanced Linux users

top

Specifications
  Frequency 2.4GHz ISM Band
  RF Sensitivity -10dBW
  HP Beam Width Approx. 56 deg
  Impedance 50 Ohm
  VSWR < 1.5:1 avg
  Standard IEEE-802.11b/g and IEEE-802.11n
  Bus Type USB2.0 Type A
  Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM (11g), BPSK, QPSK, CCK (11b)
  Radio Technology Direct Sequence Spread Spectrum (DSSS)
  Data Rate 300 /150 /108 /54 / 48 / 36 / 24 / 18 / 12 / 11 / 9 / 6 / 5.5 / 2 / 1Mbps auto fallback
  Security 64/128/256-bit WEP Encryption, 802.1x, WPA/WAP2 ( TKIP, IEEE 802.1x) AES
  Drivers indows 98SE, Me, 2000, Windows 10/8.1/8/7/VISTA/XP, Linux, Mac OS X 10.6 10.7 10.8 10.9 Mavericks
  LEDs Link, Activity
  Temperature 32~122F (0 ~50C)
  Humidity 0~95% (Non Condensing)
  Length 12" or 30cm
  Material Base Metal
  Connectivity USB1.1/2.0 Cable
