Driven by the latest NextG 820.11n High Speed USB Wi-Fi dongle with a built-in RF amplifier, this slim and handy USB-Yagi directional antenna delivers a remarkable horse power of 2200mW at a top speed of 300Mbps.

Unlike most Yagi antennae with long broom and numerous director elements, the design of the NextG USB-Yagi aims at reducing the overall length of the antenna and whilst exceeding the isotropic gain with a wide 56 deg HPBW (half power beam width) beaming aperture to pick up the Wi-Fi signal nearby and afar, blending the best of both worlds.

See the excellent antenna performance below.

It is also slim and light weight that you could carry it in a traveller bag.

From a technical standpoint, no antenna can be designed with purely trial and error, let alone the ones without calibration and tuning which turn out to make a hugh difference in performance.

We use computer aided design (CAD) to engineer the seamless integration of the BALUN (the antenna's driving element) and the USB dongle (radio), a critical differential advantage for matching the impedance in the light of maximizing the signal transmission and penetration without incurring power loss in coaxial cable.

The antenna is made of rigid metal frame and elements so that its geometry, particularly the driver loop element, stays intact against transportation or normal usage for peak performance

As a result, it instantly improves your computer's Wi-Fi reception capability beyond the built-in standard factory gears.

It works within minutes. Simpy plug in the USB2.0 cable of the NextG USB-Yagi antenna to the laptop or desktop PC followed by a few simple clicks for CD-ROM driver installation - There is absolutely no need to worry about the cable compatibility issue.

What's more? You could construct a High Power Universal Wi-Fi Repeater with the additional 11N USB-Omni AP/Repeater kit. Typical application is to pick up Wi-Fi signal from ashore and let other computers share the Internet simultaneously.

Here's how it works. Use the USB-Yagi to catch the remote signal and share it amongst the other Wi-Fi PC clients with the 11N USB-Omni AP/Repeater. It works with all brands of (remote) wireless router, including OPEN or secured WEP, WAP/WAP2 PSK AES TKIP and 802.1x RADIUS server such as BT Openzone and Free Wi-Fi. Detailed Universal Repeater setup manual is included in the 11N USB-Omni AP/Repeater kit.

Simply faster and more powerful!!





USB-TurboTenna High Power Waveguide WiFi antenna

  • NO-LOSS in Cabling
  • Plug & Play WaveGuide Antenna
  • 28dBm High Power
  • USB2.0 cable supplied
  • mini-tripod supplied
  • Windows 10, 8 and 7



HongkongPost
Please enter coupon code in the box. Leave it empty if you don't have one.
Insurance will be added to the Cart for review before making payment. INSURANCE
USB-TurboTenna WiFi antenna
UNIT(S)
US$79.95/Unit



The brand new field proven USB-TurboTenna waveguide antenna is equipped with the high performance USB2.0 WiFi dongle that comes with a 2 meters USB2.0 cable as a complete WarDriving kit. Instantly improves your computer's WiFi reception capability beyond the built-in standard factory gear. It works within minutes. Simply plug in the USB cable of the USB-TurboTenna antenna to the laptop or desktop PC and follow a few simple clicks for CD-ROM driver installation - there is absolutely no need to worry about the cable compatibility issue.

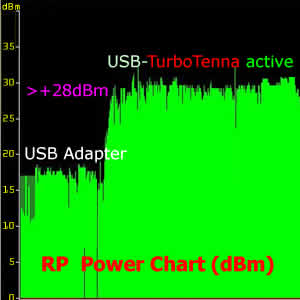

The USB-TurboTenna delivers a remarkable 28dBm horse power in the direction it is pointing with a HPBW beaming aperture of 30 degree. See the power difference in the diagram on the right.

The USB-TurboTenna is 30cm long with 8.5cm diameter that provides sufficient waveguide runway for ultimate beam focus, resulting in penetrating the concrete walls to improve signal strength and quality. We use NO PAINT on the body of the antenna so it is free from the hazardous lead materials usually found in BLACK paint. Besides, we paid our workers fairly beyond the standard of FairTrade. Unlike other cantenna that uses the off-the-shelf materials with shorter length and larger diameter, the USB-TurboTenna is precisely engineered and manufactured to provide the optimal performance. It looks elegant on book shelf with the glossy metal frame and the front protective plastic nose.

Why do we design the USB-TurboTenna using the external dongle rather than internal?

We could hide the dongle inside the antenna but this is not going to give you any protection for outdoor application particularly during raining and thunderstorm. The reason for this is that lightning could induce electric shocks through the USB cable and could subsquently damage the terminating equipment. The external dongle offer the flexibility of cascading an optional lightning arrestor (see left) between the antenna and the USB dongle. You may also daisy-chain a RF amplifier in case you need more horse power in the future.





Packaging Content
  USB-TurboTenna antenna with tripod 1 unit
  CD-ROM drivers for Windows 10/8/7 and Linux 1 unit
  2 meters USB 2.0 cable 1 unit
  User Guide 1 unit



Features and Benefits
  High Performance directional waveguide antenna
  1800mW Power Output
  mini -tripod for easy desktop setup
  WiFi signal booster through obstruction
  Ideal for fixed installation



Specifications
  Frequency 2.4GHz to 2.5GHz
  RF Power output 28dBm
  Standard IEEE-802.11b/g and IEEE-802.11n
  Impedance 50 Ohm
  HP Beam Width 30 deg
  Length 12 inches (30cm)
  Material Base Metal
  Connectivity USB2.0
  Polarization Linear Vertical
  Net Weight 650g
